Speed increaser 50,000rpm 4,474kW

6 January 2017
featured image

New reference for high speed and high power gearboxes.

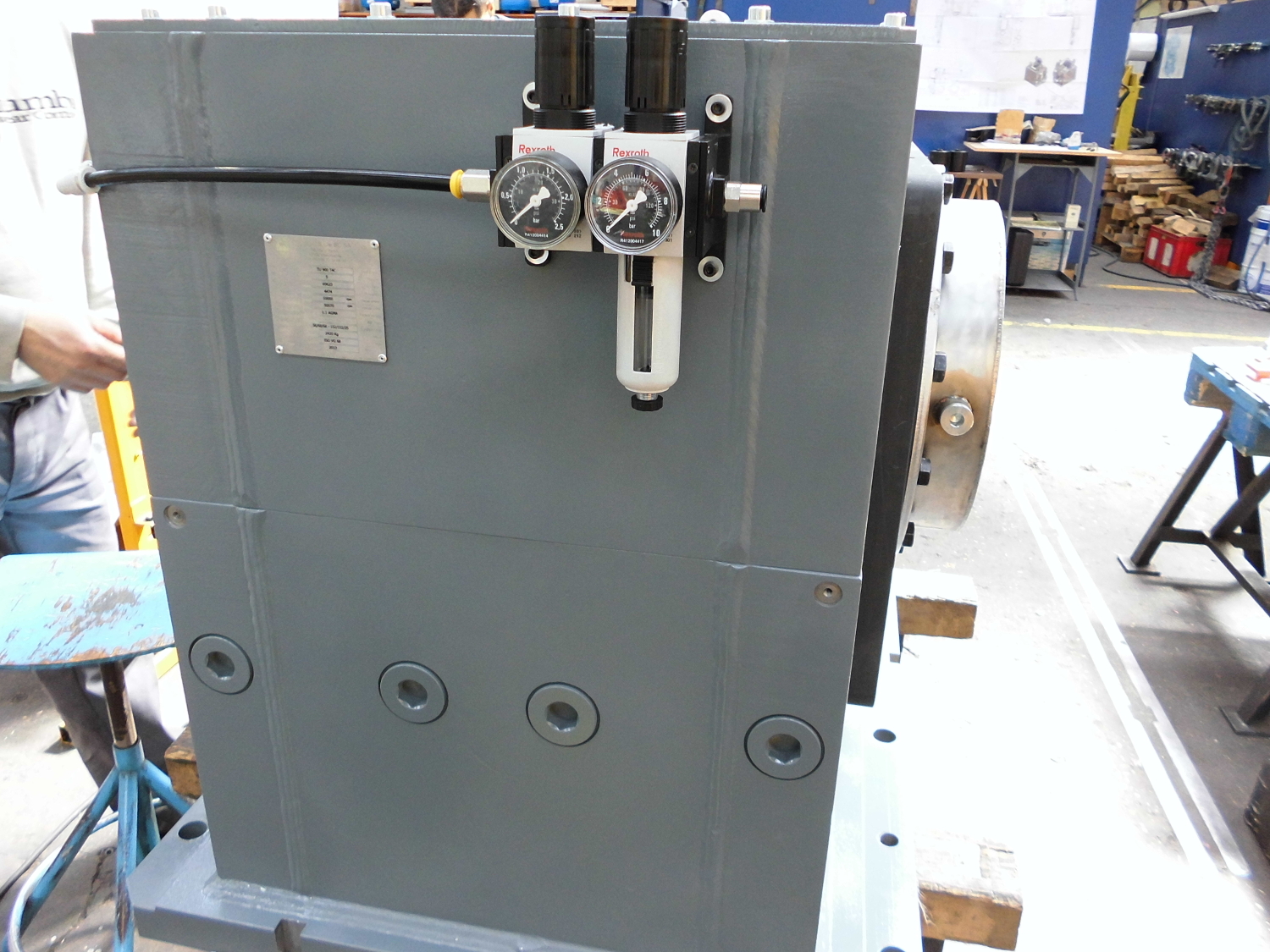

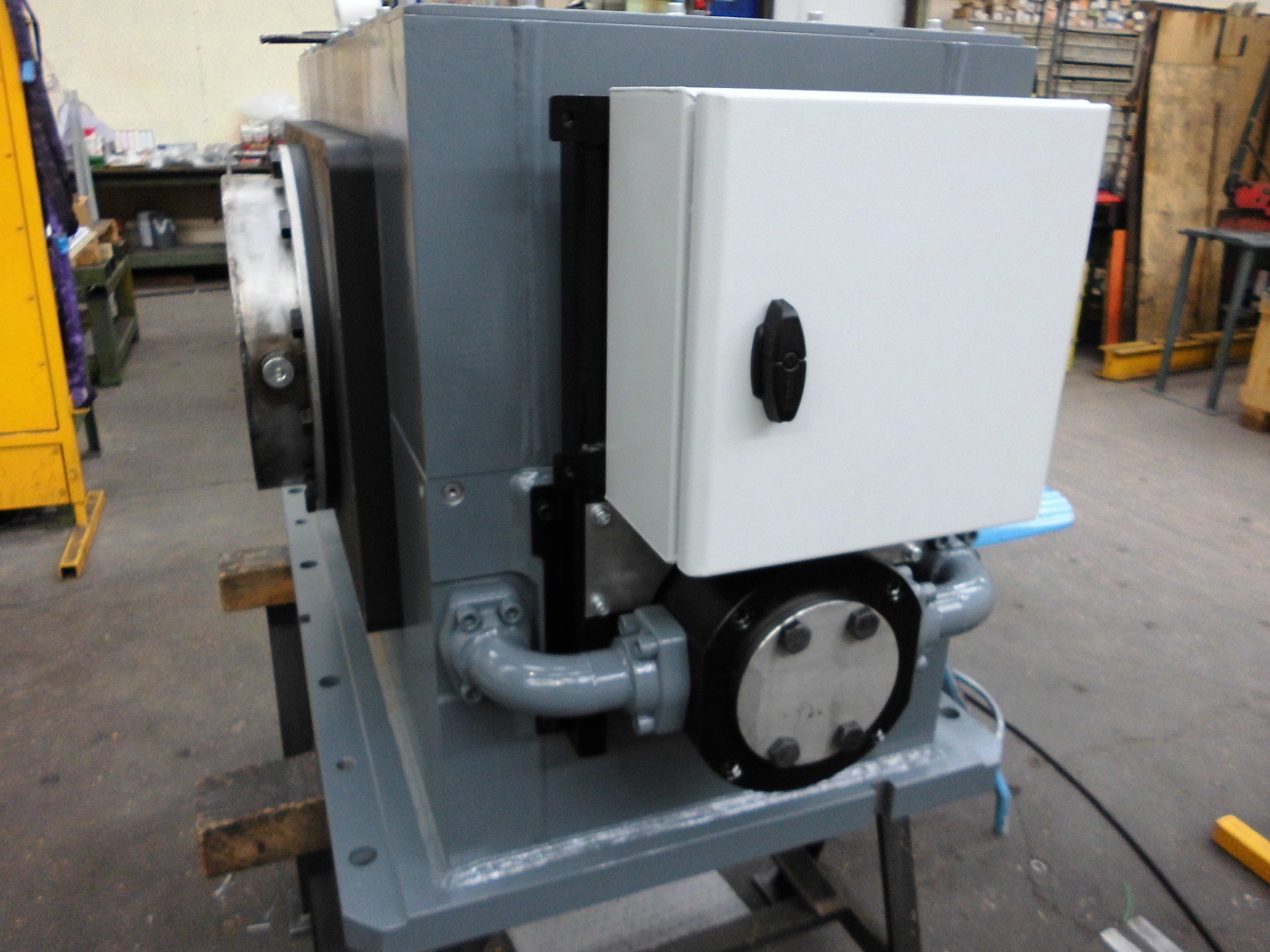

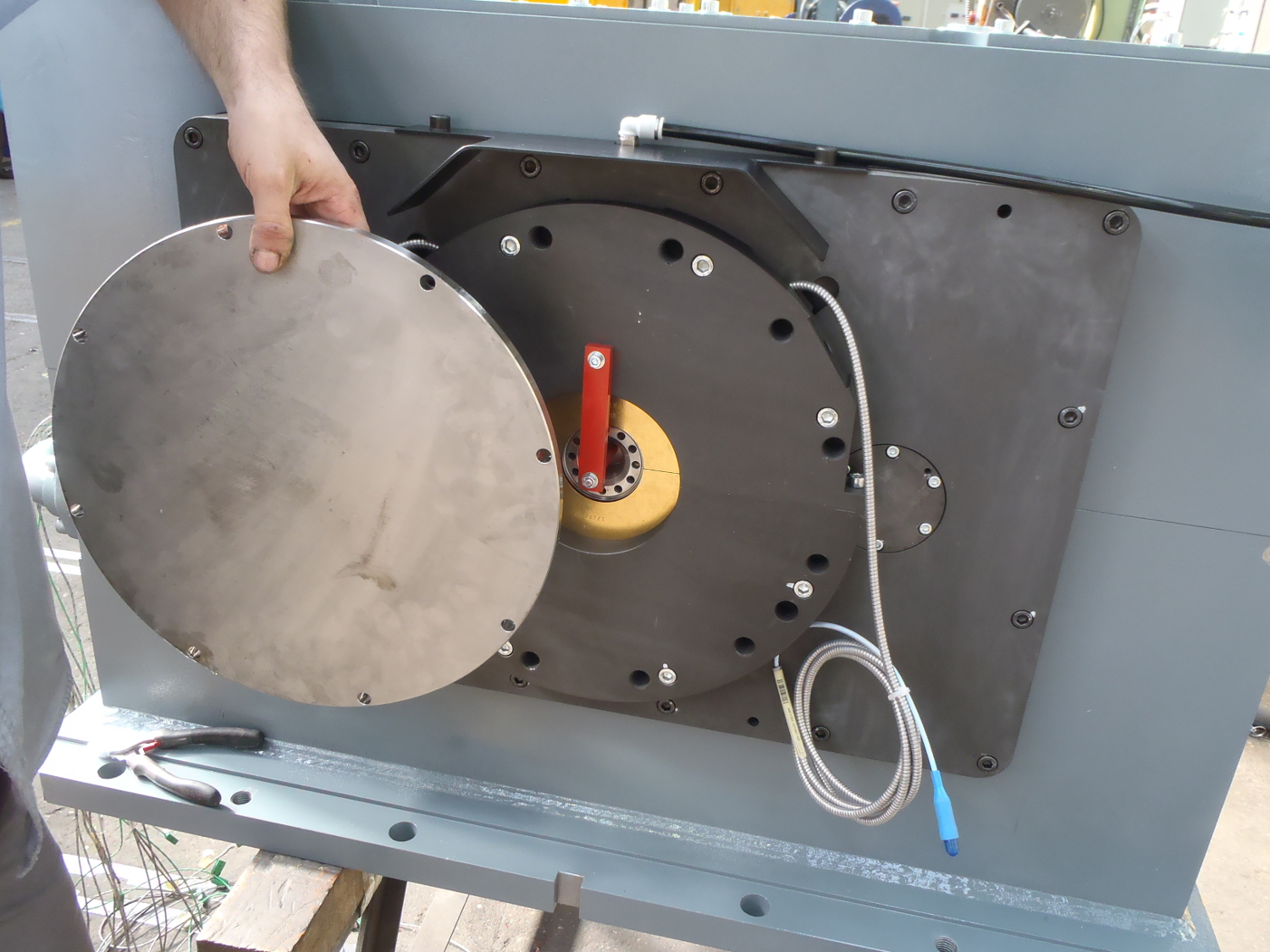

High speed gearbox with split torque



  • Power : 4,474kW
  • Input Speed : 10,000 rpm
  • Output speed : 50,000 rpm
  • Max Torque : 840 Nm
  • Weight : 2,420 Kg

This machine has been made with high specifics volume constraints and a deadline to observe. Input/Output shafts are coaxial and the HS gear stability is guaranteed by the split torque design.

High speed gearbox with split torque

High speed gearbox with split torque
High speed gearbox with split torque

Speed increaser with belt drive system 15,400rpm 12.8kW

6 January 2017
featured image

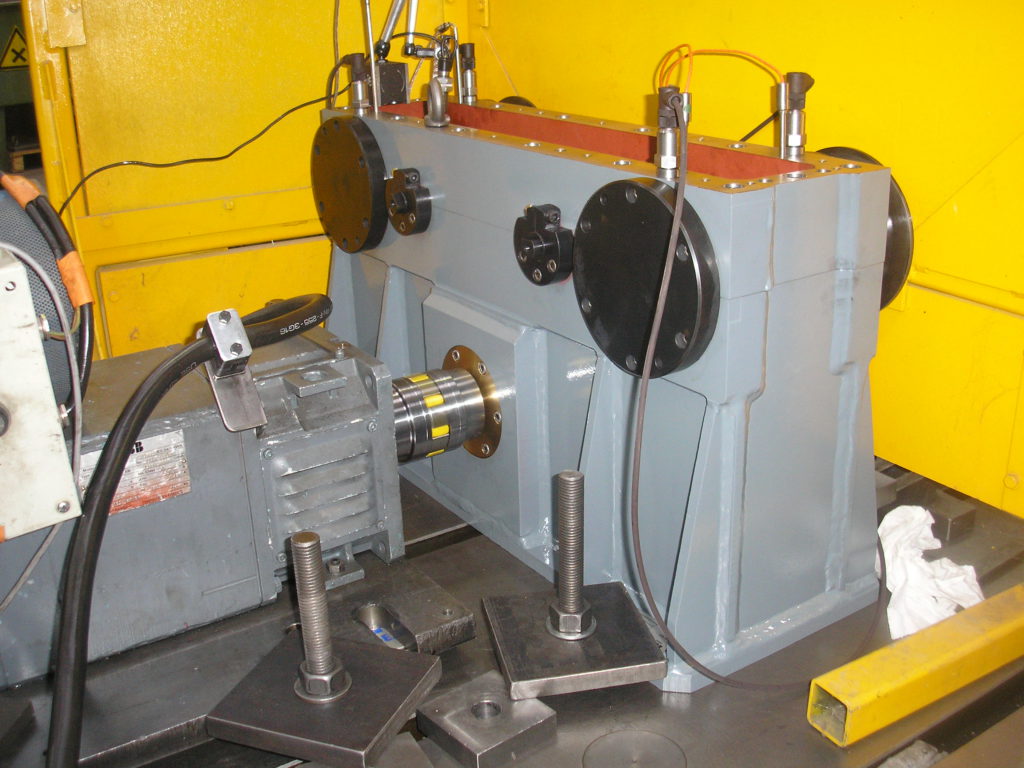

In the idea to satisfy the best its customers, BCSA GEAR offer the design which fit the best its customer needs. Here is a speed increaser using a pulley and belt system. This gearbox transmit the required power for a cost 36.7% cheaper that the classic gears system.

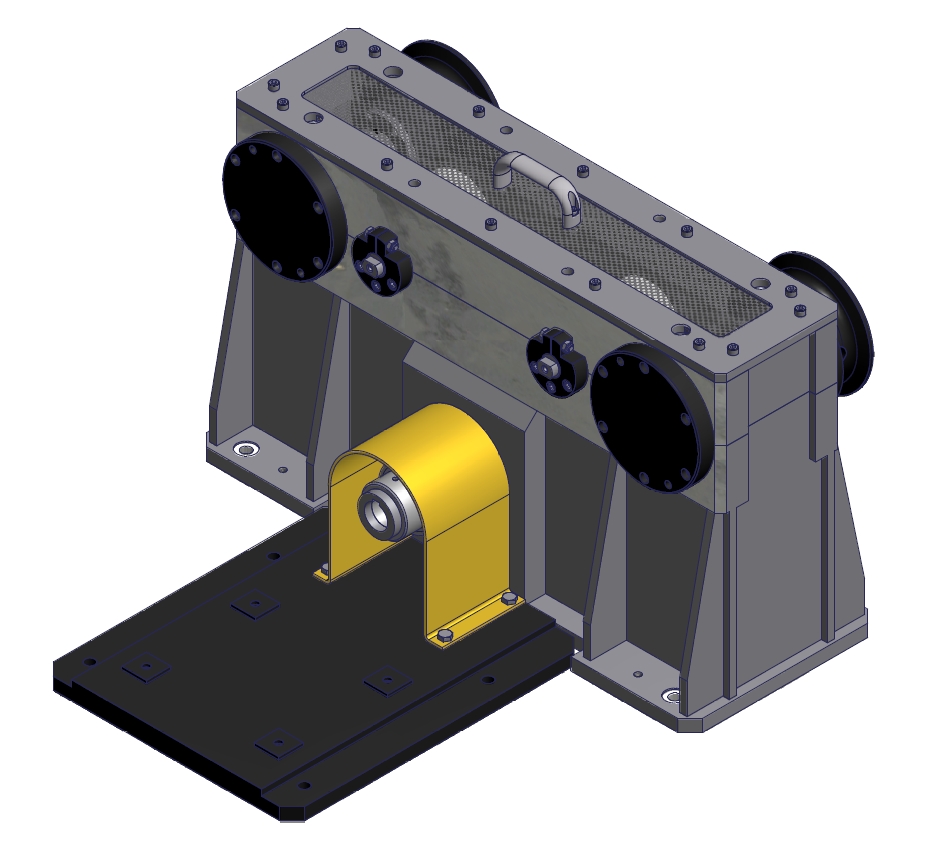

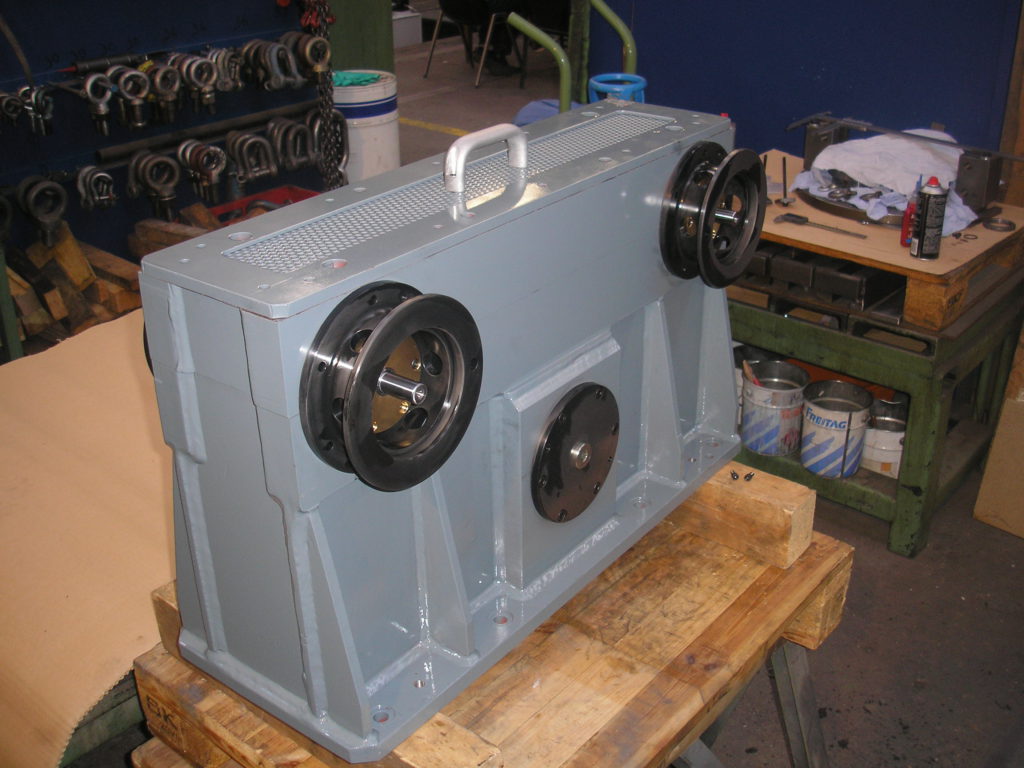

belt driving system gearbox



belt driving system gearbox

Power: 12.8 kW
Input Speed: 3,500 rpm
Output Speed: 15,400 rpm
Max Torque: 7.95 nm
Weight: 345 Kg

Speed increaser for F1 engine test bench

6 January 2017
featured image

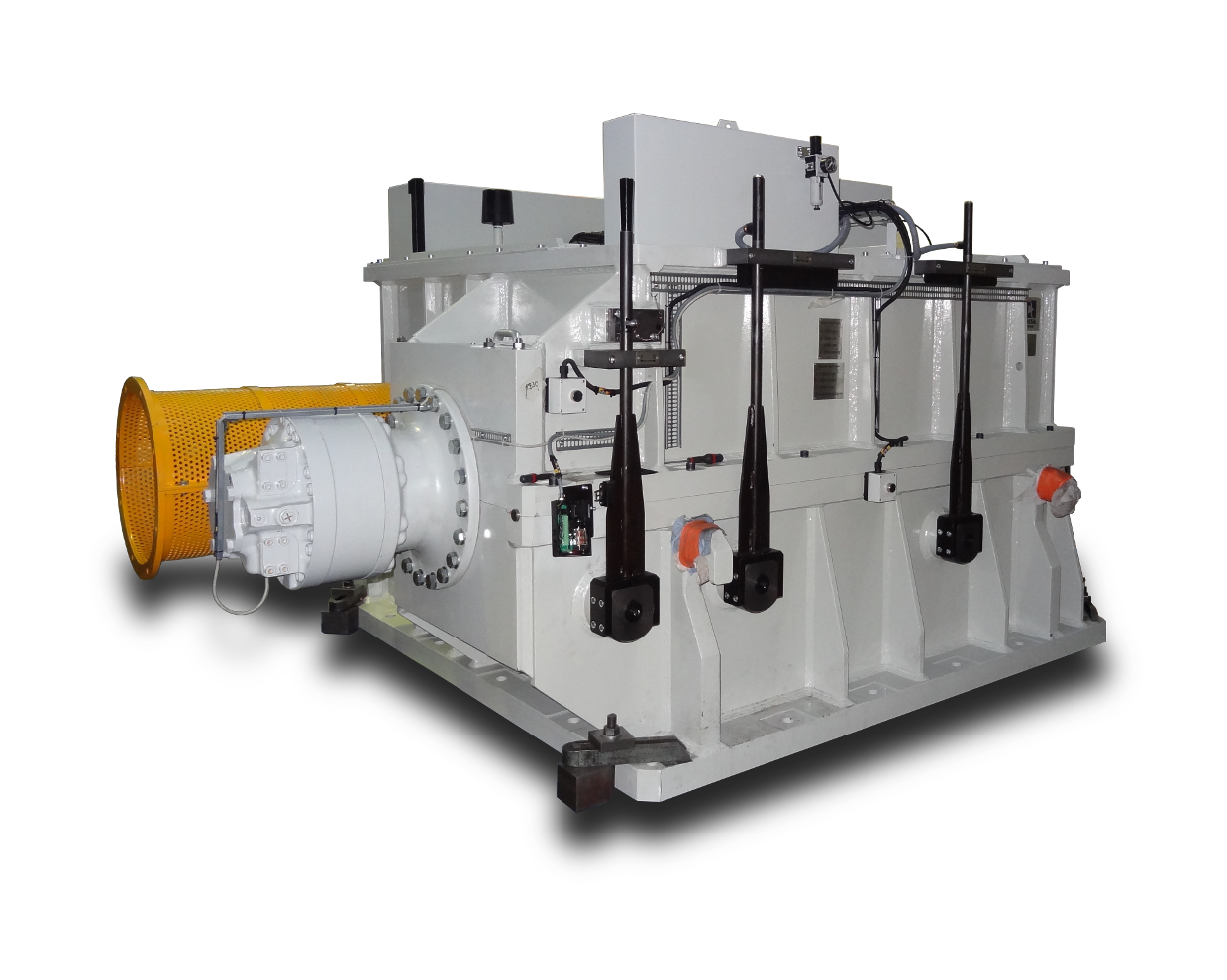

We have made a gearbox for a F1 engine test bench.
This is a 4 speeds and 2 outputs device. It is designed to resist to high powers and strong accelerations.

Gearbox for F1 engine testing purpose
  • Power : 2 x 418kW
  • Input Speed : 2 666 tr/min
  • Output Speed : 16 000 tr/min
  • Max Torque : 2 x 4 000 Nm
  • Weight : 805 Kg



Gearbox for F1 engine test rig

Gearbox for F1 engine test rig
Gearbox for F1 engine test rig
